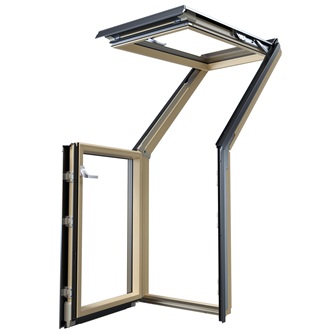

Roof Terrace Window System
The FAKRO Roof Terrace Window System is designed to combine natural light, functionality, and a clean modern look in attic living spaces. The system pairs an upper unit with a matching lower unit to create a large glazed area and, depending on the lower unit selected, provide access to the terrace. It is designed for roof pitches from 35° to 55° and is available in operable and fixed lower unit options to suit different project requirements.
Summary bullets
- P50 triple-glazed units for energy-efficient performance
- high-quality pine wood interior with a natural finish
- toughened outer pane and topSafe system for added security
- easy-clean exterior coating and Anthracite Gray exterior profiles

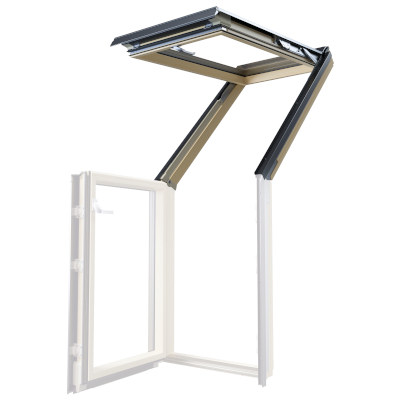

Upper Unit Options
The upper unit is available in two versions. Both models feature P50 triple glazing, high-quality pine wood construction, dual-function operation, and an easy-clean exterior coating. The main difference is ventilation. The FOP-V includes an automatic air inlet, while the FOP-X does not.
Lower Unit Options

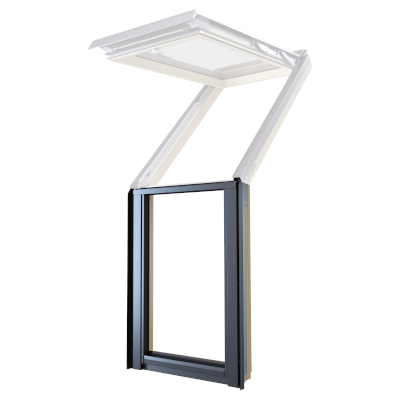

The lower unit completes the system and is available in three versions. The FOR and FOL are operable lower units designed to provide terrace access, while the FOX is a fixed lower unit for projects where a non-operable bottom section is preferred.
Handing is shown as viewed from the exterior.
-
FOP
-
P50 triple-glazed unit for thermal and acoustic performance -
Double coated wood with ecological acrylic lacquer. -
easy-clean exterior coating
- 1.1 W/m²K (0.19 BTU/h·ft²·°F) window U-value argon inert gas filled panes yes external glass toughened yes external glass with easy maintenance layer yes internal glass laminated (safe) 2 coats, clear acrylic, natural finish varnishing 4 seals 2-step micro-ventilation multi-point opening silver handle, bottom-mounted handle
- 1.1 W/m²K (0.19 BTU/h·ft²·°F) window U-value argon inert gas filled panes yes external glass toughened yes external glass with easy maintenance layer yes internal glass laminated (safe) 2 coats, clear acrylic, natural finish varnishing 4 seals 2-step micro-ventilation multi-point opening silver handle, bottom-mounted handle
-
-
FO_
- P50 triple-glazed unit for thermal and acoustic performance
- Double coated wood with ecological acrylic lacquer.
- easy-clean exterior coating
- 1.1 W/m²K (0.19 BTU/h·ft²·°F) window U-value argon inert gas filled panes yes external glass toughened yes external glass with easy maintenance layer yes internal glass laminated (safe) 2 coats, clear acrylic, natural finish varnishing 4 seals 2-step micro-ventilation multi-point opening silver handle, left side, upper section, viewed from the exterior handle
- 1.1 W/m²K (0.19 BTU/h·ft²·°F) window U-value argon inert gas filled panes yes external glass toughened yes external glass with easy maintenance layer yes internal glass laminated (safe) 2 coats, clear acrylic, natural finish varnishing 4 seals 2-step micro-ventilation multi-point opening silver handle, right side, upper section, viewed from the exterior handle
- 1.1 W/m²K (0.19 BTU/h·ft²·°F) window U-value argon inert gas filled panes yes external glass toughened yes external glass with easy maintenance layer yes internal glass laminated (safe) 2 coats, clear acrylic, natural finish varnishing 4 seals no handle handle
-
Please note, standard glazing units are only suitable for installation of up to 3,000 feet above sea level.
