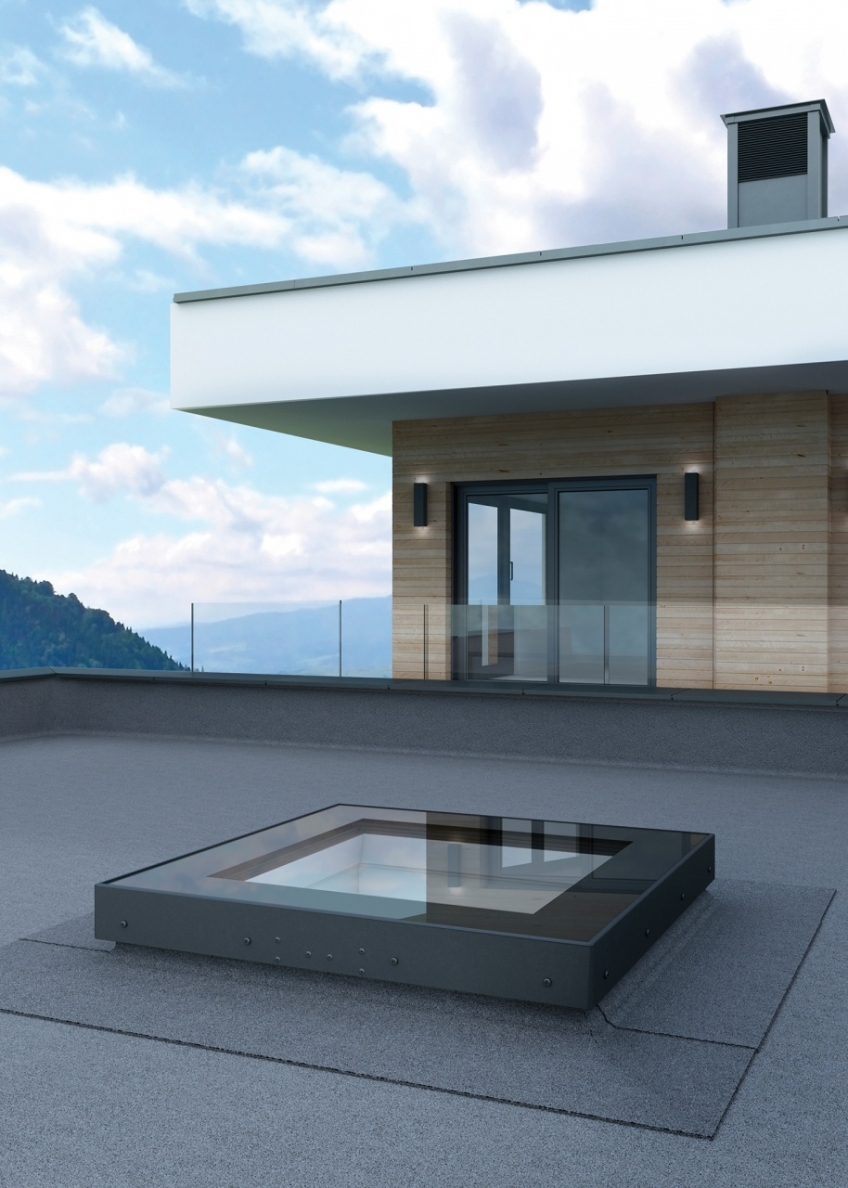

PDX fixed deck mounted skylight

The PDX skylight meets contemporary design and technological standards, suitable for both residential and commercial buildings. Main feature includes advanced three-layer glass technology, designed to enhance thermal efficiency. This contributes to reduced energy expenditures and optimized indoor climate control. Additionally, the three-layer glass improves acoustic insulation and elevates safety standards, making it a fitting choice for modern residential and commercial environments..

Please note, standard glazing units are only suitable for installation of up to 3,000 feet above sea level.

Features:

Infinity Glass: Frameless top glass surface in a unique design, adding a touch of elegance.
Triple Glazing: Ensures optimal thermal insulation, soundproofing, and security.
Energy-efficient white PVC frame filled with EPS foam insulation.
Suitable for installation on flat or pitched roofs with slopes ranging from 0-60 degrees.
Flashings for pitched roofs are compatible with slopes between 15-60 degrees.(EL-D and EH-D)
Factory-installed brackets simplify the installation process.

PDX fixed

CHECK COMPATIBLE FLACHINGS

Shop Now Where to buy? Contact

PDX
- suitable for roof pitches between 0-60°
PDX G53
- 0.29 [BTU/h ft²F] U-Factor (skylight) 0.17 Solar Heat Gain Coefficient (SHGC) 0.33 Visible Transmittance (VT) 67 Condensation Resistance

Energy modeling data

Component-level thermal and solar performance values.

U-factor breakdown

Component	U (Btu/hr·ft²·°F)	U (W/m²·K)
Center of glazing (Ucenter)	0.25	1.39
Edge of glazing (Uedge)	0.30	1.70
Frame (Uframe)	0.37	2.08

SHGC breakdown

Component	SHGC
Overall product	0.17
Center of glazing (SHGCc)	0.235
Frame component (SHGCf)	0.01

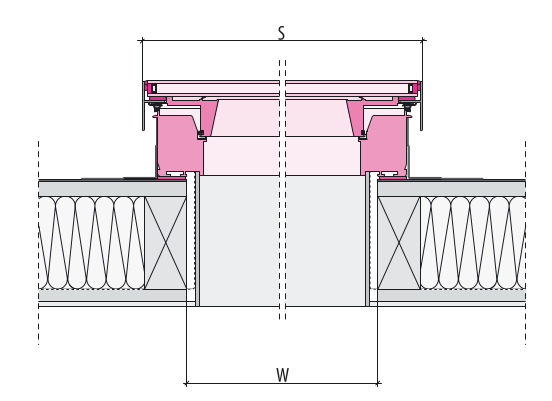

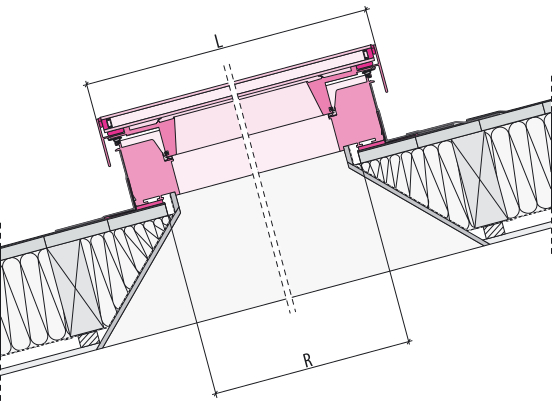

PDX sizes

Skylight size	14 1/2 x 45 3/4	21 x 26 7/8	21 x 37 7/8	21 x 45 3/4	21 x 54 7/16	21 x 70 1/4
SxL [in]	20 x 51	26 1/4 x 32 1/8	26 1/4 x 43 1/8	26 1/4 x 51	26 1/4 x 59 5/8	26 1/4 x 75 1/2
WxR [in]	14 1/2 x 45 3/4	21 x 26 7/8	21 x 37 7/8	21 x 45 3/4	21 x 54 7/16	21 x 70 1/8
Weight [lbs]	98	82	103	120	137	172

Skylight size	30 1/16 x 37 7/8	30 1/16 x 45 3/4	30 1/16 x 54 7/16	44 1/4 x 26 7/8	44 1/4 x 45 3/4
SxL [in]	35 1/4 x 43 1/8	35 1/4 x 51	35 1/4 x 59 5/8	49 1/2 x 32 1/8	49 1/2 x 51
WxR [in]	30 1/16 x 37 7/8	30 1/16 x 45 3/4	30 1/16 x 54 7/16	44 1/4 x 26 7/8	44 1/4 x 45 3/4
Weight [lbs]	131	152	173	138	200
