Flat roof windows type C and type F

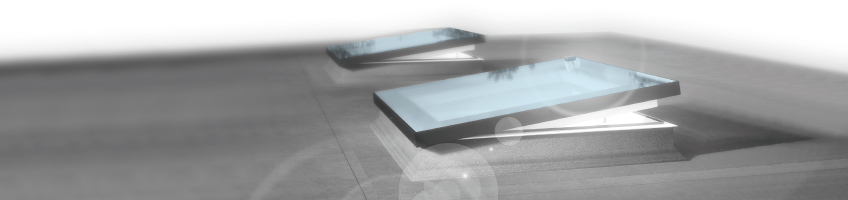

Flat roof deck mounted skylights



Characteristics of flat roof skylight type F - FAKROTYPE F



Flat roof deck mounted skylights are designed and manufactured from high quality materials, using innovative solutions and with great attention to aesthetics. Excellent insulation parameters, ample natural light, possibility of ventilation, ease of operation and wide range of accessories make them ensure high comfort of using rooms under the flat roof.

Flat roof skylights are available in three versions:

DEF - electrically opened
DMF - manually opened
DXF - non-opening

Skylight’s structure



The D_F flat roof skylight features a sleek modern look. It is characterised by excellent thermal insulation parameters. The structure of the frame is the same as for FAKRO domed skylights for flat roofs, however, the main difference is the glazing which is bonded using modern manufacturing technologies to produce a smooth and seam-free surface.

Skylight’s structure

The electrically operated windows have a built-in sensor that automatically activates the sash closing function when it rains.

Flat roof windows type C and type F



The structure and design of the DEF Z-Wave electrically-operated thermo flat roof skylight has earned it the prestigious German Red Dot Design Award in 2016.

Flat roof windows type C and type F

Glazing units used in D_F flat roof deck mounted skylights

Glazing unit structure:
6H - Tg18Ar - 4HT - Tg18Ar - 44.2T

Glazing units used in D_F flat roof deck mounted skylights Glazing units used in D_F flat roof deck mounted skylights
DU6 DU8*

Glazing unit structure:
6H - Tg18Ar - 4HT - Tg18Ar - 44.2T

Glazing unit structure:
6H - Tg10Kr - 4HT- Tg12Kr - 4HT -
Tg12Kr - 33.2T
Glazing unit structure for size:
46/46
6H - Tg16Ar - 4HT - Tg18Ar - 55.2T
* special order
