Flat roof skylights - Architects guide

MODEL: PDS

Triple glazed(tempred-tempred-laminated)
SHGC: 0.17
U-Factor[BTU/h ft^2F]: 0.29
Visible Transmittence: 0.33
Condensation Resistence: 67

Roof pitch: 0°-60°

Installation: Deck-Mounted

Type: Vented(solar powered)



Flat roof skylights - Architects guide

MODEL: PDX

Triple glazed(tempred-tempred-laminated)
SHGC: 0.17
U-Factor[BTU/h ft^2F]: 0.29
Visible Transmittence: 0.33
Condensation Resistence: 67

Roof pitch: 0°-60°

Installation: Deck-Mounted

Type: Fixed



Flat roof skylights - Architects guide

MODEL: DEF

Triple glazed (tempred-tempred-laminated)
SHGC: 0.26
U-Factor[BTU/h ft^2F]: 0.23
Visible Transmittence: 0.35
Condensation Resistence: 71

Roof pitch: 2°-15°

Installation: Deck-Mounted

Type: Vented(powered from grid)



Flat roof skylights - Architects guide

MODEL: DEF Solar

Triple glazed (tempred-tempred-laminated)
SHGC: 0.26
U-Factor[BTU/h ft^2F]: 0.23
Visible Transmittence: 0.35
Condensation Resistence: 71

Roof pitch: 2°-15°

Installation: Deck-Mounted

Type: Vented(solar powered)



Flat roof skylights - Architects guide

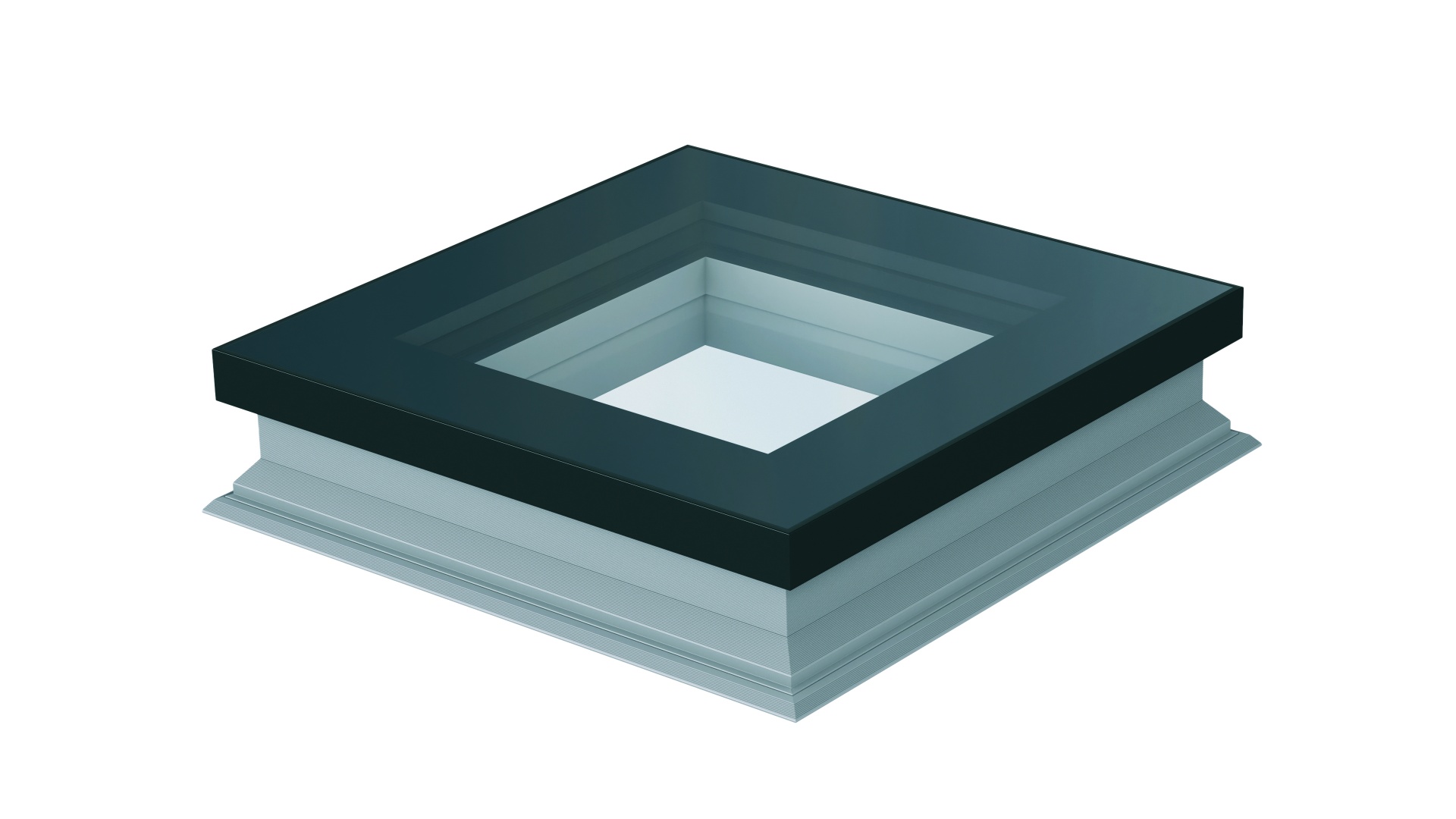

MODEL: DXF

Triple glazed (tempred-tempred-laminated)
SHGC: 0.26
U-Factor[BTU/h ft^2F]: 0.22
Visible Transmittence: 0.35
Condensation Resistence: 70

Roof pitch: 2°-15°

Installation: Deck-Mounted

Type: Vented(solar powered)



Flat roof skylights - Architects guide

MODEL: DRF

Triple glazed (tempred-tempred-laminated)
SHGC: 0.26
U-Factor[BTU/h ft^2F]: 0.23
Visible Transmittence: 0.35
Condensation Resistence: 70

Roof pitch: 2°-15°

Installation: Deck-Mounted

Type: roof access skylight



Flat roof skylights - Architects guide

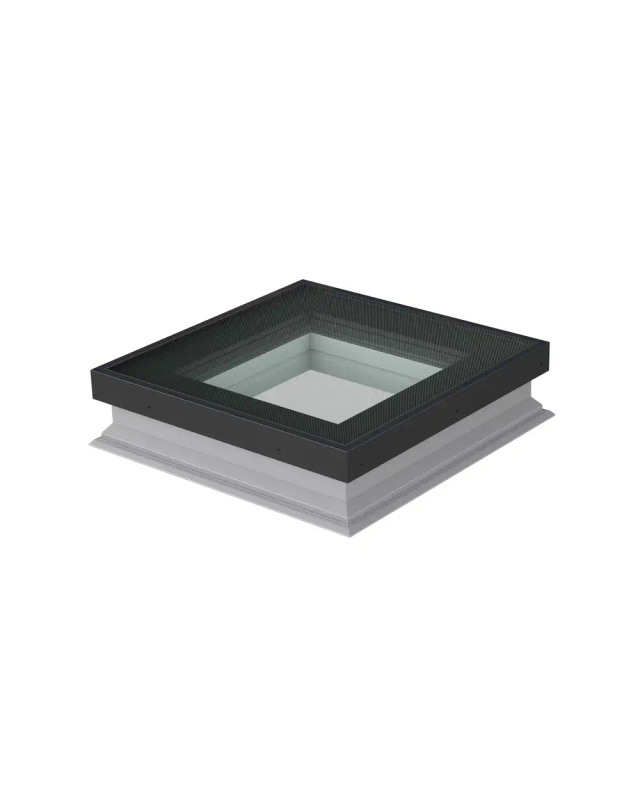

MODEL: DXW

Triple glazed (toughened outer pane-tempred-laminated)
SHGC: 0.26
U-Factor[BTU/h ft^2F]: 0.22
Visible Transmittence: 0.35
Condensation Resistence: 70

Roof pitch: 0°-15°

Installation: Deck-Mounted

Type: Fixed(walkable)



Flat roof skylights - Architects guide

MODEL: FVC-S

Double glazed (tempred-laminated)
SHGC: 0.22
U-Factor[BTU/h ft^2F]: 0.56
Visible Transmittence: 0.42
Condensation Resistence: 56

Roof pitch: 0°-60°

Installation: Curb-Mounted

Type: Vented(Solar powered)



Flat roof skylights - Architects guide

MODEL: FXC

Double glazed (tempred-laminated)
SHGC: 0.22
U-Factor[BTU/h ft^2F]: 0.46
Visible Transmittence: 0.42
Condensation Resistence: 62

Roof pitch: 0°-60°

Installation: Curb-Mounted

Type: Fixed
