Metal folding attic ladders

  • LML


    • Telescopic stile endstelescopic stile ends
    • White hatchinsulated door with white finish
    • Listwy wykonczeniowewhite metal trim
    • Peripheral sealweather seal gasket
    • Metal treadnon-slip steps
    • System dopasowania długości drabinkisystem of adjusting the ladder length to the ceiling height
    • Ladder unloading mechanismladder unloading mechanism, built in handrail
    • System of quick installation in the ceilingquick installation in the ceiling - installation brackets
    • Possibility of installing additional accessoriesadditional accessories available
    • Fully assembledfully assembled and ready for quick installation in the ceiling
    • 2 year warranty
    LML Lux Insulated
    • 350 lbs maximum loading 0.19 BTU/h ft2F loft ladder hatch U-value 1 1/8 insulation thickness 1 3/8 hatch thickness EN 14975 norm requirements 5.2 attic ladder R-value

    LML

    The LML is a metal, three-section folding attic ladder with piston-assisted unfolding. Adjusting the ladder length to the ceiling height is simplified with adjustable stile ends.

  • LMP


    • Stile endsplastic ends
    • White hatchwhite hatch - plastic latch
    • Peripheral sealweather seal gasket
    • Metal treadnon-slip steps
    • System dopasowania długości drabinkiladder length adjustment after cutting
    • Ladder unloading mechanismladder unloading mechanism, built in handrail
    • Possibility of installing additional accessoriesadditional accessories available
    • Fully assembledfully assembled and ready for quick installation in the ceiling
    • Do wysokich pomieszczeńintended for installation with high ceilings
    • 2 year warranty
    LMP Insulated
    • 375 lbs maximum loading 0,19 BTU/hft²F loft ladder hatch U-value 1 1/8 insulation thickness 1 3/8 hatch thickness 5.2 attic ladder R-value

    LMP

    The LMP is a metal, 3-section folding attic ladder, designed for high spaces, up to 12’. It contains an unloading mechanism, hidden in the handrail that supports the folding and unfolding of the ladder.



  • LMS


    • Stile endsplastic ends
    • Beige hatchinsulated door ready for paint
    • Peripheral sealweather seal gasket
    • Metal treadnon-slip steps
    • System dopasowania długości drabinkiladder length adjustment after cutting
    • Possibility of installing additional accessoriesadditional accessories available
    • Fully assembledfully assembled and ready for quick installation in the ceiling
    • 2 year warranty
    LMS Insulated
    • 350 lbs maximum loading 0,19 BTU/hft²F loft ladder hatch U-value 1 1/8 insulation thickness 1 3/8 hatch thickness ANSI 14.9.2004 norm requirements 5.2 attic ladder R-value

    LMSLMS

    The LMS is a heavy-duty attic ladder that folds in three sections. The lid is insulated and a seal lines the perimeter of the frame.

  • LME


    • Stile endsRubber Adjustable ends
    • Beige hatchinsulated door ready for paint
    • Peripheral sealweather seal gasket
    • Metal treadnon-slip steps
    • Handrailhandrail
    • System dopasowania długości drabinkiladder length adjustment after cutting
    • Possibility of installing additional accessoriesadditional accessories available
    • Fully assembledfully assembled and ready for quick installation in the ceiling
    • 2 year warranty
    LME Insulated
    • 400 lbs maximum loading 0,19 BTU/hft²F loft ladder hatch U-value 1 1/8 insulation thickness 1 3/8 hatch thickness ANSI 14.9 norm requirements 5.3 attic ladder R-value

    LMELME

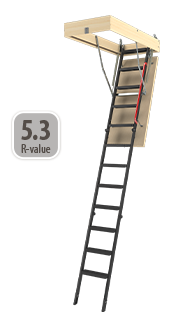

    LME is a metal, three-section folding attic ladder with an insulated, paintable beige hatch. It allows easy height adjustment by cutting the last section and using metal ends with rubber caps for a precise fit and added stability.

  • LMB (available only in local stores)


    • Stile endsplastic ends
    • Beige hatchinsulated door ready for paint
    • Peripheral sealweather seal gasket
    • Metal treadnon-slip steps
    • Handrailhandrail
    • Possibility of installing additional accessoriesadditional accessories available
    • 1 year warranty
    LMB basic-insulated
    • 375 lbs maximum loading 1 hatch thickness 3.7 attic ladder R-value

    LMB (available only in local stores)

    The LMB model is a basic insulated metal attic ladder. it features standard accessories for the user to access an used space in the attic.





Instructions

 Installation instructions:

 Technical specification:

 Cross-section:

 Safety instruction:

 Other:
