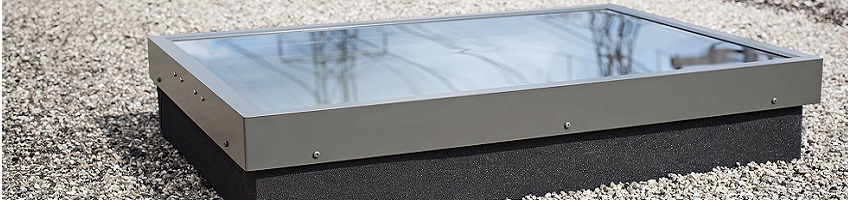

Standard Curb Mounted Skylights FXR
FXR skylight is an easy and affordable way to add natural light to any interior. It is simple but versatile frame design makes it a perfect fit for a new and any retrofit project.
Please note, standard glazing units are only suitable for installation of up to 3,000 feet above sea level.
Characteristics
- Easy and simple installation
- Suitable for roof pitches between 0-60 degrees
- Low-emission and heat-reflecting double glazing with Argon gas
- Warm spacer increases condensation resistance
- 360 turn-around installation
- Available with EL-C or EL-H flashing
- A channel built into the inner frame of the skylight collects moisture and drains it to the outside
- Suitable for curbs made of 2''x4'', 2'x6'' or 2''x8''
-

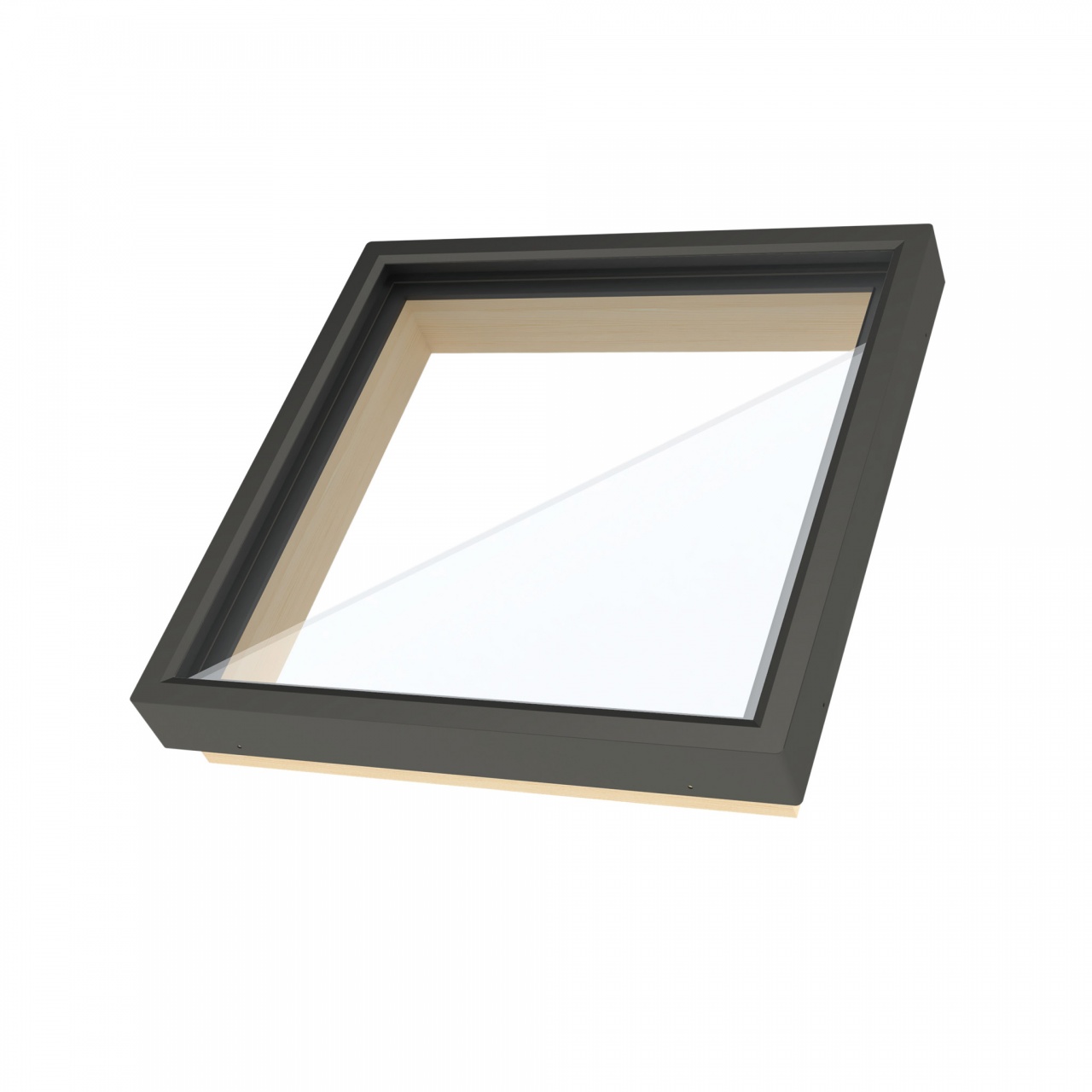

FXR with laminated glass G31
-
made of material which does not absorb moisture, the window is durable and resistant to corrosion -
designed for rooms with periodically increased humidity (kitchens, bathrooms) -
suitable for roof pitches 0-60 -
360° turn-around installation
- 1,84 [W/m2 K] window U-value 0.49 [BTU/h ft2 F] U-Factor (skylight) 0.26 Solar Heat Gain Coefficient (SHGC) argon inert gas filled panes 0.51 Visible Transmittance (VT)
-
FXR sizes - special order
| Size | 14x30 * | 14x46 * | 22x22 * | 22x30 * | 22x34 * | 22x46 * | |
| Outside curb (WxR) | in. mm | 17 1/2x33 1/2 445x851 | 17 1/2x49 1/2 445x1257 | 25 1/2x25 1/2 648x648 | 25 1/2x33 1/2 648x851 | 25 1/2x37 1/2 648x952 | 25 1/2x49 1/2 648x1257 |
| Inside curb (BxK) | in mm | 14 1/2x30 1/2 368x775 | 14 1/2x46 1/2 368x1181 | 22 1/2x22 1/2 572x572 | 22 1/2x30 1/2 572x775 | 22 1/2x34 1/2 572x876 | 22 1/2x46 1/2 572x1181 |
| SxL | in. mm | 19 1/4x35 1/4 488x894 | 19 1/4x51 1/4 488x1300 | 27 1/4x27 1/4 691x691 | 27 1/4x35 1/4 691x894 | 27 1/4x38 1/8 691x995 | 27 1/4x51 1/4 691x1300 |
| Daylight area (glass) | (sq.ft) m2 | 3.06 0.29 | 4.67 0.43 | 3.52 0..33 | 4.77 0.44 | 5.39 0.50 | 7.27 0.68 |
| Size | 22x70 * | 30x30 * | 30x46 * | 34x34 * | 34x46 * | 46x46 * | |
| Outside curb (WxR) | in. mm | 25 1/2x73 1/2 648x1867 | 33 1/2x33 1/2 851x851 | 33 1/2x49 1/2 851x1257 | 37 1/2x37 1/2 952x952 | 37 1/2x49 1/2 952x1257 | 49 1/2x49 1/2 1257x1257 |
| Inside curb (BxK) | in mm | 22 1/2x70 1/2 572x1790 | 30 1/2x30 1/2 775x775 | 30 1/2x46 1/2 775x1181 | 34 1/2x34 1/2 876x876 | 34 1/2x46 1/2 876x1181 | 46 1/2x46 1/2 1181x1181 |
| SxL | in. mm | 27 1/4x75 1/8 691x1909 | 35 1/4x35 1/4 894x894 | 35 1/4x51 1/4 894x1300 | 39 1/8x39 1/8 995x995 | 39 1/8x51 1/4 995x1300 | 51 1/4x51 1/4 1300x1300 |
| Daylight area (glass) | (sq.ft) m2 | 11.02 1.02 | 6.46 0.60 | 9.85 0.92 | 8.25 0.77 | 11.13 1.03 | 15.01 1.39 |
| Size | 22x55 * | 30x55 * | 30x72 * | 46x72 * | |
| Outside curb (WxR) | in. mm | 25 1/2x58 1/2 648x1486 | 33 1/2x58 1/2 851x1486 | 33 1/2x75 1/4 851x1911 | 49 1/2x75 1/4 1257x1911 |
| Inside curb (BxK) | in mm | 22 1/2x55 1/2 572x1410 | 30 1/2x55 1/2 775x1410 | 30 1/2x72 1/4 775x1835 | 46 1/2x72 1/4 1181x1835 |
| SxL | in. mm | 27 1/4x60 1/4 691x1529 | 35 1/4x60 1/4 894x1529 | 35 1/4x76 7/8 894x1954 | 51 1/8x76 7/8 1300x1954 |
| Daylight area (glass) | (sq.ft) m2 | 8.68 0.81 | 11.60 1.08 | 15.27 1.42 | 23.32 2.17 |
* special order with a lead time of 8-10 weeks
Instructions
Installation instructions:
Safety notes:
Drawings:
