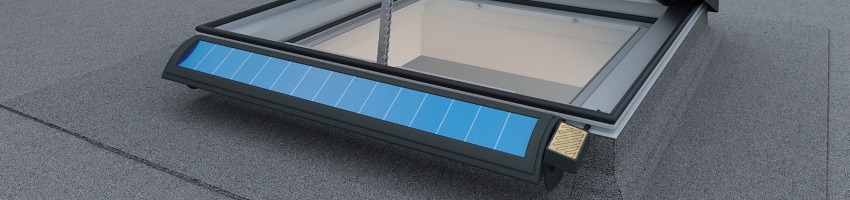

PDS solar powered deck mounted skylight

The PDS skylight meets contemporary design and technological standards and is suitable for both residential and commercial buildings. Its main features include advanced three-layer glass technology and a solar-powered venting option. These contribute to reduced energy expenditures and optimized indoor climate control. Additionally, the three-layer glass improves acoustic insulation and elevates safety standards.

Please note, standard glazing units are only suitable for installation of up to 3,000 feet above sea level.

Features:

Infinity Glass: Frameless top glass surface in a unique design, adding a touch of elegance.
Triple Glazing: Provides superior thermal insulation, soundproofing, and increased security.
Energy-efficient white PVC frame filled with EPS foam insulation.
Suitable for installation on flat or pitched roofs with slopes ranging from 0-60 degrees.
Flashings for pitched roofs are compatible with slopes between 15-60 degrees.(EL-D and EH-D)
Factory-installed brackets simplify the installation process.
Equipped with a solar panel, battery, and rain sensors for reliable operation.
Comes with a factory-programmed remote control for ease of use.
Includes a mosquito screen as a standard feature.

PDS solar powered

CHECK COMPATIBLE FLACHINGS

Shop Now Where to buy? Contact

PDS
- suitable for roof pitches between 0-60°
PDS G53
- 0.29 [BTU/h ft²F] U-Factor (skylight) 0.17 Solar Heat Gain Coefficient (SHGC) 0.33 Visible Transmittance (VT) 67 Condensation Resistance

Energy modeling data

Thermal and solar performance values for whole-product and component-level energy modeling.

U-factor breakdown

Component	U (Btu/hr·ft²·°F)	U (W/m²·K)
Overall product	0.29	1.66
Center of glazing (U_center)	0.25	1.39
Edge of glazing (U_edge)	0.30	1.70
Frame (U_frame)	0.38	2.17

SHGC breakdown

Component	SHGC
Overall product	0.172
Center of glazing (SHGC_c)	0.235
Frame component (SHGC_f)	0.010

PDS sizes

Skylight size	21 x 26 7/8	21 x 37 7/8	21 x 45 3/4	21 x 54 7/16	30 1/16 x 37 7/8
SxL [in]	26 1/4 x 32 1/8	26 1/4 x 43 1/8	26 1/4 x 51	26 1/4 x 59 5/8	35 1/4 x 43 1/8
WxR [in]	21 x 26 7/8	21 x 37 7/8	21 x 45 3/4	21 x 54 7/16	30 1/16 x 37 7/8
Weight [lbs]	91	115	130	148	143

Skylight size	30 1/16 x 45 3/4	30 1/16 x 54 7/16*	44 1/4 x 26 7/8	44 1/4 x 45 3/4*
SxL [in]	35 1/4 x 51	35 1/4 x 59 5/8	49 1/2 x 32 1/8	49 1/2 x 51
WxR [in]	30 1/16 x 45 3/4	30 1/16 x 54 7/16	44 1/4 x 26 7/8	44 1/4 x 45 3/4
Weight [lbs]	164	x	151	x
