Flashings for roof windows and skylights

Flashings for balcony window ELN-AT/G, EHN-AT/G Thermo

Description

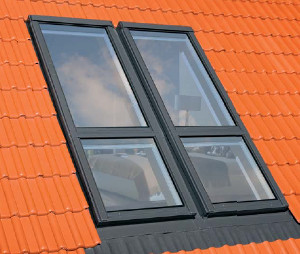

Flashings for balcony window ESV/G, EZV-A/G, EHN-A/G, EHN-AT/G Thermo

ELV-AT/G and ELN-AT/G Thermo flashings are designed for FGH-V Galeria balcony roof windows. These flashings provide a secure, weather-tight connection between the window and the roofing material, while the Thermo design adds insulation around the window frame to help reduce thermal bridging.



Available flashing options:

  • ELV-AT/G Thermo – for low-profile roofing materials such as asphalt shingles, flat tiles, and slate up to 0.40 in thick. Designed for V installation depth.
  • ELN-AT/G Thermo – for low-profile roofing materials such as asphalt shingles, flat tiles, and slate up to 0.40 in thick. Designed for N installation depth.

Designed for roof pitches from 35° to 55°.



The Balcony window FGH-V Galeria can be combined horizontally with FDY-V windows with raised axis of rotation windows when installed with special flashings for combinations K__ / G. Both (FGH-V and FDY-V) windows have a lower sash of the same height.







Instructions

 Installation instructions:

 ​Installation videos:

 ​Product details:
